Knife Combo

Standard ATC CNC Router combined with 3-head knife and camera, the system is upgraded to Syntec 60W-E, professionally used in high-end engraving machines, with higher anti-interference ability; using Taiwan Delta servo motor, the accuracy is higher, and the operation is more stable.

See Specifications and Options below

We offer single call outs or service contracts. Contact us for more information.

Specification Table

No Description
1 Working area is 1600*2500mm
2 9.0kw air cooling ATC spindle
3 Oscillating knife cutting head and creasing wheel
4 Heavy duty structure
5 Linear 8 pc Tool Magazine with 8 ISO 30 tools
6 High end Taiwan Syntec 60W-E controller
7 Japanese Yaskawa 750W servo motor and drivers
8 Delta inverter from Taiwan
9 Taiwan 25mm linear guide rails
10 Dust cover on X axis
11 Vacuum &T slot table
12 7.5kw air pump double stage with filter&Pressure relief valve
13 Auto oil Lubrication
14 Tool calibrator
15 Hand wheel
16 Dust collector
17 Big CCD Camera system

Options

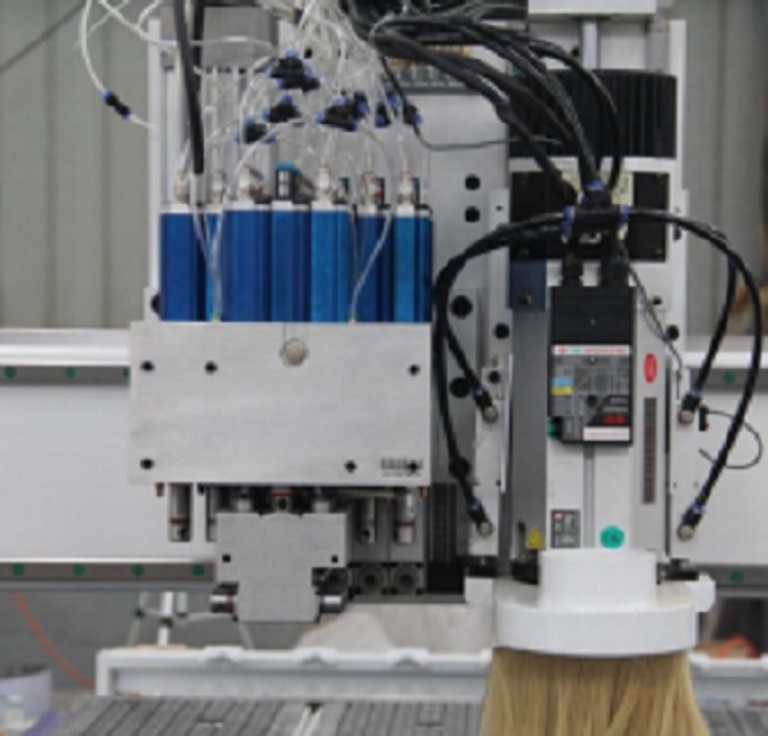

Drill Bank
Drill Bank 10V 6 H

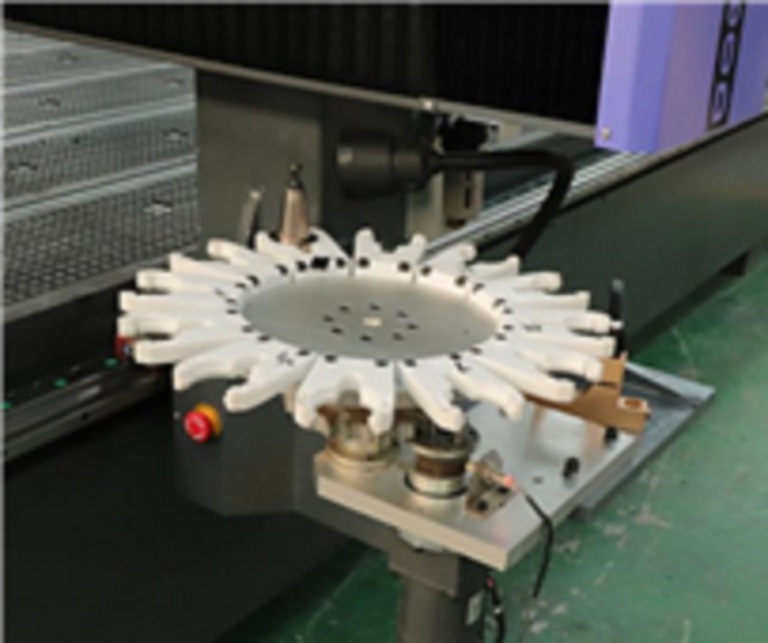

Rotary Tool Change
Rotary Tool Change

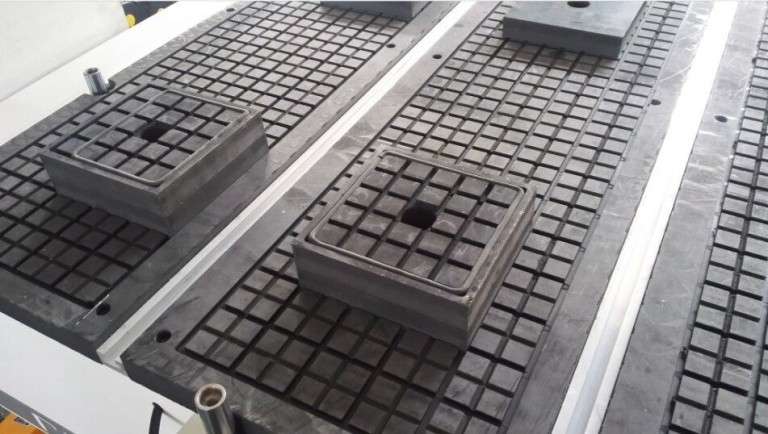

Vacuum Pods
Vacuum Pods
